Product Center
Type III, Type IV
This series of aerogel blanket is a flexible and efficient thermal insulation blanket. This material is a combination of nano aerogel and inorganic fiber. The product is mainly designed for thermal insulation of various high-temperature furnaces, equipment, tanks and other arc equipment. It is an ideal choice for customers to pursue better insulation effect and lower energy consumption. Nano aerogels have the lowest thermal conductivity among the known solids. The aerogel blanket is compounded with the nano material, which is a soft, inorganic, environmentally friendly and easy to construct thermal insulation material. These special properties make it the best product among thermal insulation materials.
Advantages
-
Excellent Insulation EffectThe insulation effect is 2-5 times that of traditional insulation materials, and the lifespan is longer. Achieve equivalent insulation effect, with a thickness only a fraction of traditional materials -
Hydrophobicity and breathabilityThe overall material is hydrophobic, which can effectively prevent moisture from entering the interior of pipelines and equipment, and also has Class A fire resistance performance -
Easy to ConstructLightweight, easy to cut and sew to adapt to various shapes of pipes and equipment insulation, and requires less time and manpower for installation -
Reduce Transportation CostsLess usage and packaging volume can significantly lower logistics costs.
Physical Properties
| Product Form | Roll |
|---|---|
| Thickness | 3, 5, 6, 10 mm |
| Thermal Conductivity (at 25℃) | Type III ≤0.021 W/(m·K), Type IV ≤0.025 W/(m·K) |
| Thermal Conductivity (at 300℃) | Type III ≤0.036 W/(m·K) |
| Thermal Conductivity (at 500℃) | Type III ≤0.072 W/(m·K), Type IV ≤0.072 W/(m·K) |
| Maximum Service Temperature | Type III 650℃, Type IV 800~1300℃ |
| Fire Rating | Class A |
| Density | 200±20% kg/m³ |
| Hydrophobicity | Hydrophilic/Hydrophobic |

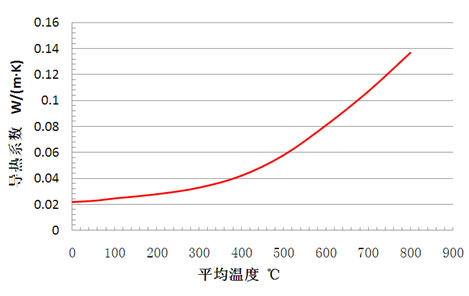

Thermal Conductivity
