This series of aerogel blanket is a flexible and efficient thermal insulation blanket. This material is a combination of nano aerogel and inorganic fiber, which is specially used for thermal insulation of various high-temperature industrial pipelines, tanks and other arc equipment. It is an ideal choice for customers to pursue better insulation effect and lower energy consumption.
Nano aerogels are known to have very low thermal conductivity in solids. The aerogel blanket is compounded with the nano material, which is a soft, inorganic, environmentally friendly and easy to construct thermal insulation material. These special properties make it an excellent product in the thermal insulation industry.
Product Center
S-level, A-level, B-level
Advantages
-
Excellent Insulation EffectThe insulation effect is 2-5 times that of traditional insulation materials, and the lifespan is longer. Achieve equivalent insulation effect, with a thickness only a fraction of traditional materials -
Hydrophobicity and FireproofThe overall material is hydrophobic, which can effectively prevent moisture from entering the interior of pipelines and equipment, and also has Class A fire resistance performance -
Easy to ConstructLightweight, easy to cut and sew to adapt to various shapes of pipes and equipment insulation, and requires less time and manpower for installation -
Save Transportation CostsLess package volume and lighter weight can greatly reduce the transportation cost of insulation materials
Physical Properties
| Product form | roll-shaped |
|---|---|
| Thickness | 3mm, 5mm, 6mm, 10mm |
| Width | 1500mm |
| Thermal conductivity at 25 ℃ | S-level: ≤ 0.017W/(m · K) A-level: ≤ 0.021W/(m · K) B-level: ≤ 0.023 W/(m · K) |
| Thermal conductivity at 300 ℃ | S-level: ≤ 0.036 W/(m · K) A-level: ≤ 0.036 W/(m · K) B-level: ≤ 0.042 W/(m · K) |
| Maximum operating temperature | 650℃ |
| Fire rating | A-level |
| Density | 200+20% kg/m3 |
| Hydrophobic rate | ≥98 % |
| Environmental protection related | Passed RoHS testing |

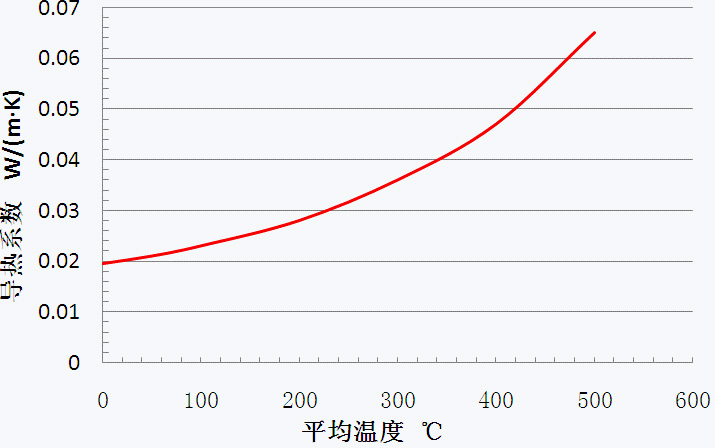

Thermal Conductivity
Application
Petroleum extraction steam pipeline, prefabricated insulation pipe
Thermal power plant, petrochemical plant, chemical plant pipeline
Insulation for storage tanks, containers, and other equipment
Various types of high and low temperature furnace equipment
High speed train, automobile, subway and other vehicle body insulation
Thermal insulation in the field of construction
