This series of aerogel products is an efficient thermal insulation blanket, which combines nano aerogel with inorganic fiber, and is specially used for thermal insulation of power batteries and other electrical equipment. It is an ideal choice for customers to pursue better insulation effect and lower energy consumption.
Nano aerogels are known to have very low thermal conductivity in solids. The modified series of aerogel blanket is compounded with this nano material, which is a soft, inorganic, environmental friendly and easy to construct thermal insulation material. These special properties make it an excellent product in the thermal insulation industry.
Product Center
01, 05, 06, 08, 10 Series
Advantages
-
Excellent Insulation EffectThe insulation effect is 2-5 times that of traditional insulation materials, and the lifespan is longer. Achieve equivalent insulation effect, with a thickness only a fraction of traditional materials -
Hydrophobicity and breathabilityCan prevent liquid water from passing through while allowing water vapor to pass through -
Easy to ConstructLightweight, easy to cut and sew to adapt to various shapes of pipes and equipment insulation, and requires less time and manpower for installation -
Ultra thin thicknessThe ultra-thin thickness can be applied to various insulation fields with limited space but high requirements
Physical Properties
| Product Form | Roll/Sheet |
|---|---|
| Thickness | 0.5~12mm (Customizable) |
| Thermal Conductivity (at 25℃) | Series 01 ≤0.019 W/(m·K), Series 05 ≤0.019 W/(m·K), Series 06 ≤0.021 W/(m·K), Series 08 ≤0.023 W/(m·K), Series 10 ≤0.023 W/(m·K) |
| Thermal Conductivity (at 300℃) | Series 05 ≤0.040 W/(m·K), Series 06 ≤0.036 W/(m·K) |
| Thermal Conductivity (at 500℃) | Series 08 ≤0.065 W/(m·K), Series 10 ≤0.065 W/(m·K) |
| Recommended Service Temperature | Series 01 ≤250℃, Series 05 ≤500℃, Series 06 ≤650℃, Series 08 ≤1000℃, Series 10 ≤1000℃ |
| Flame Retardant Rating | UL94 V-0 |
| Density | 130~320±20% kg/m³ (Varies by Model) |
| Insulation Performance | ≥500 MΩ |
| Dielectric Strength | ≤1 mA |
| Environmental Compliance | Passes RoHS Test |

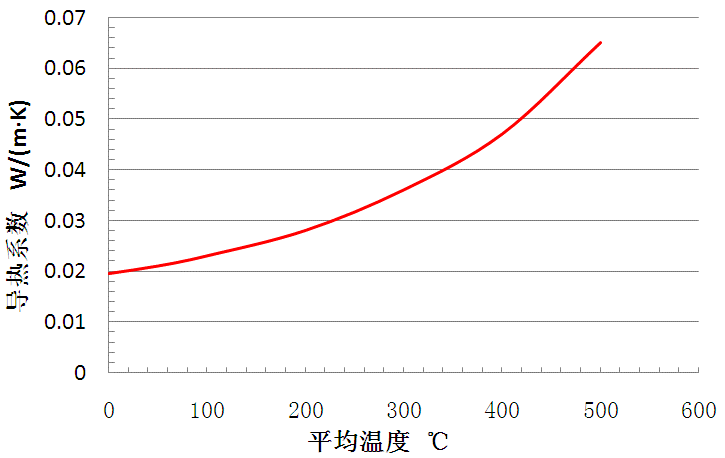

Thermal Conductivity
